MAXHUB LED DISPLAY
GH31 Series
Created for commercial excellence, the GH31 series displays are suitable for a multitude of environments, with a sleek, seamless design. Discover the benefits of the GH31 series in your lecture hall, meeting room, or exhibition space.
- Highlight
- Windows-based MAXHUB OS
- Camera
- Sound
- Display
- Scenario
- Specification

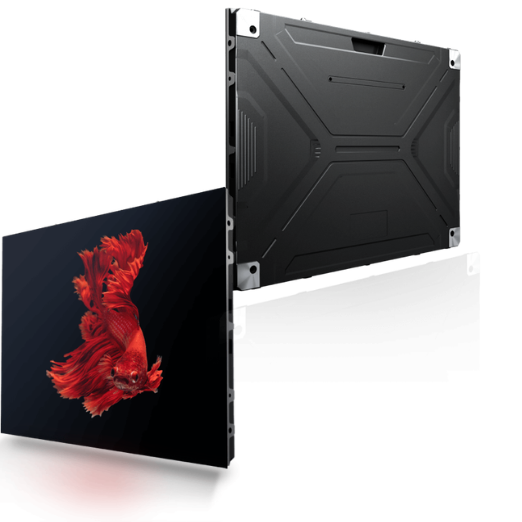

Streamlined Appearance
Stunning
compact design
6.2 Kg
lightweight structure
31 mm ultra-thin cabinet,
wall-mounted installation saves space
4:3 cabinet ratio, showing
more high-definition pixel-to-pixel
ALL-IN-ONE WINDOWS-BASED
INTERACTIVE FLAT PANEL POWERED BY
MAXHUB OS
The Windows-based MAXHUB XBoard provides seamless compatibility
*The XBoard V7 cannot operate without a PC module. The PC module, with Windows preinstalled,
is sold separately and is not included in the standard package.
Seamless Integration
The GH31 LED display solution offers excellent stability and easy maintenance with low power consumption and consistent quality.
Two-in-one design, power supply, and HUB board, no internal cabling, high stability.
· All front maintenance, replacement of LED module spare parts in seconds.
· Calibration data is automatically read back, user-level maintenance experience.
SOLUTIONS FOR LED DISPLAY
Display products are an important part of the MAXHUB product family. Therefore, we have introduced LED display products that can be used in multiple scenarios. They inherit the characteristics of MAXHUB products, such as easy deployment, easy operation, and easy maintenance which bring users an amazing display experience.
Auto Framing
With auto-framing, the MAXHUB XBoard display automatically adjusts to achieve the best angle based on the number of participants and their location, so it feels like a face-to-face interaction.
SPEAKER TRACKING
Speaker-tracking technology locates the sound source in real-time, ensuring the speaker is always the center of attention. It supports two active speakers with a dual focus
Intelligent Focus
Intelligent focus technology enables individual close-ups for multiple participants simultaneously, delivering an immersive in-person experience.
Video Fence
Take command of your meeting view with our innovative Video Fence feature. Precisely control the camera's field of view, ensuring AI tracking and focus are only applied within the designated area. Customize presets, auto-framing, speaker tracking, and other AI functions for a truly tailored meeting experience.
Recommended Products
Windows Ink
Palm Rejection
Sharp erase
Windows Ink

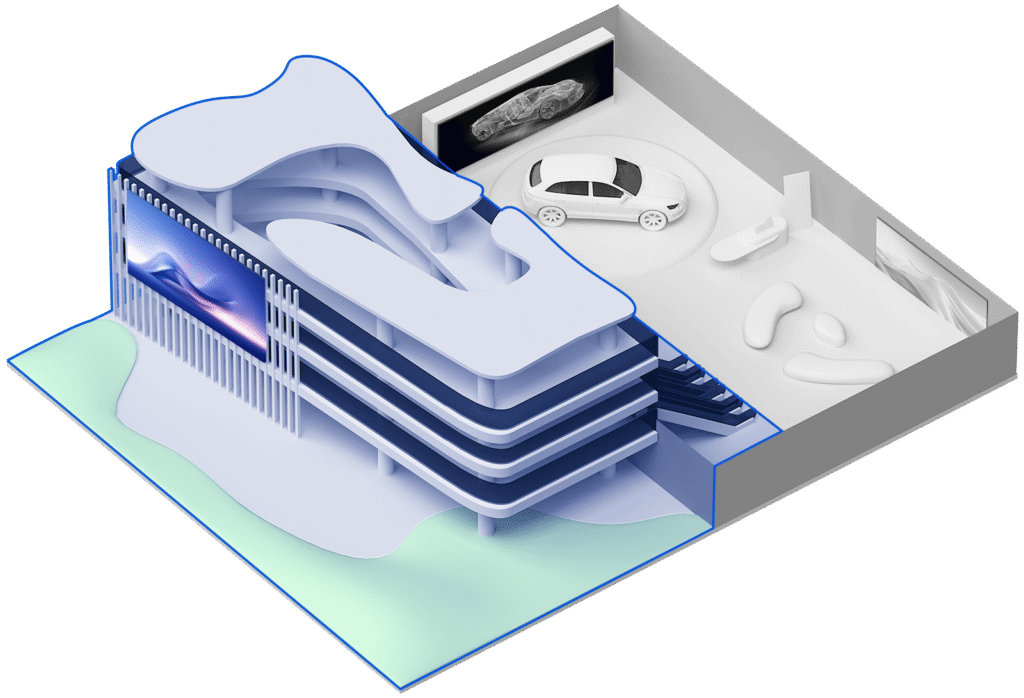

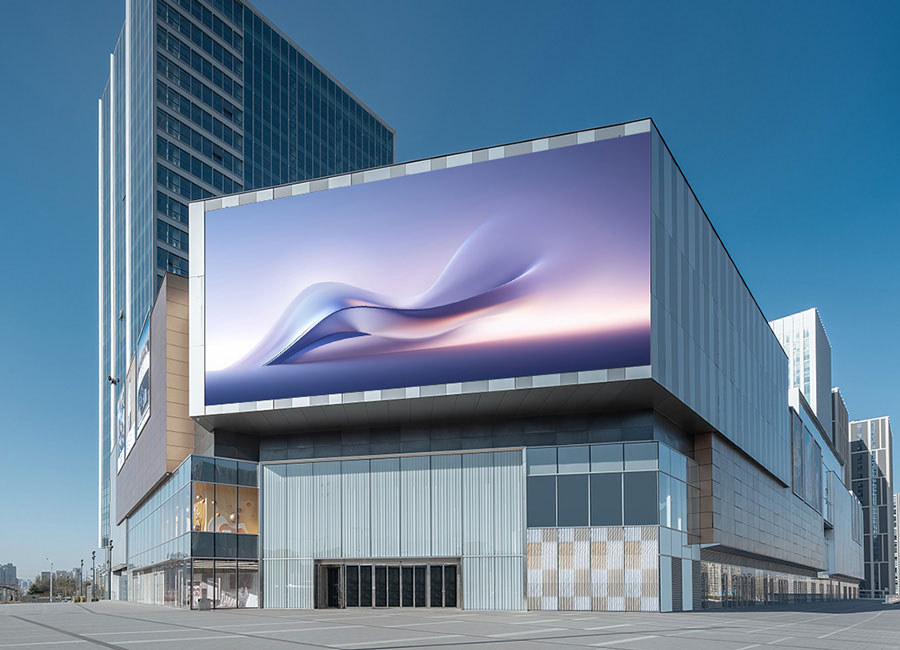

MALL EXTERNAL 3D DISPLAY
Experience the stunning, energy-efficient right-angle 3D product, easy to install with comprehensive maintenance.
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
10-50m
Viewing Distance
Designed To Impress.
Effortless to use
See everything, miss nothing. 50MP cameras with 2x optical and 5x hybrid zoom, combined with AI-powered viewing options, ensure every participant is seen and heard, promoting dynamic and inclusive collaboration. Transform your meeting experience with unparalleled visual clarity.
Efficient Installation
The GH31 Series offers simple installation to eliminate setup headaches and no need for expert support. Features include:
· Quick splicing
· Wall-mounted design reduces installation difficulty
· Fine-tuned flatness level
Application

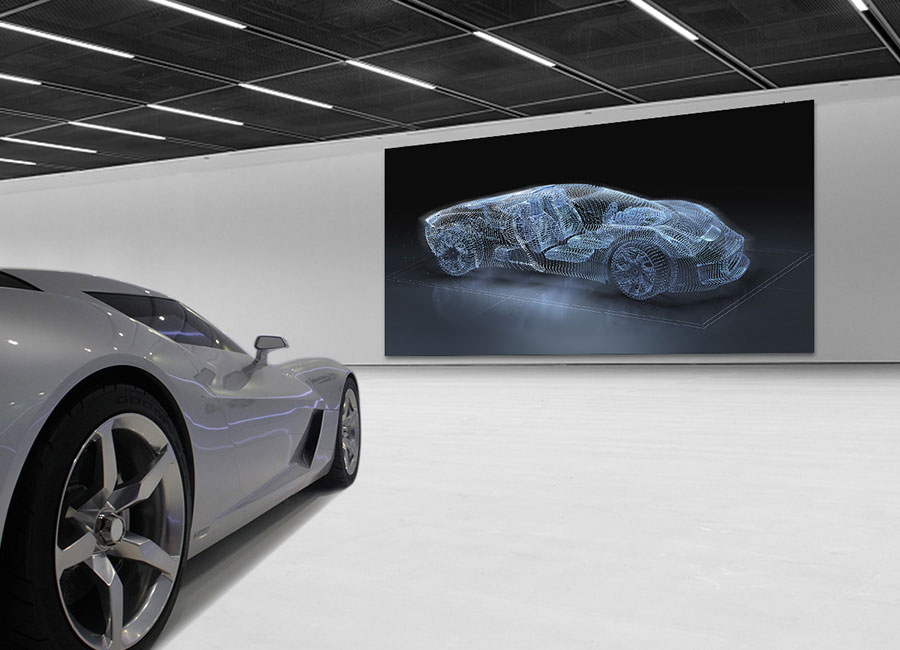

Exhibition
Lobby
Retail
Auditorium
Specification
| Specification | GH3112 | GH3115 | GH3118 |
|---|---|---|---|
| Physical Parameters | |||
| Pixel Pitch (mm) | 1.2 | 1.5 | 1.8 |
| Pixel Composition | SMD2210 | SMD1212 | SMD1515 |
| Panel Resolution (W×H) | 512×384 | 416×312 | 348×261 |
| Panel Dimension (W×H×D mm) | 640×480×31 | 640×480×31 | 640×480×31 |
| Panel Dimension (W×H×D inch) | 25.1×18.8×1.2 | 25.1×18.8×1.2 | 25.1×18.8×1.2 |
| Panel Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Panel Weight (kg/unit) | 6.2 | 6.2 | 6.2 |
| Maintenance Method | Front | Front | Front |
| Technical Parameters | |||
| Brightness (cd/m²) | 550 | 550 | 550 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° |
| Color Gray Scale (Bit) | 13 | 13 | 13 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Contrast Ratio | 6500:1 | 6500:1 | 6500:1 |
| Power Consumption (W/m², Max.) | 450 | 360 | 295 |
| Power Input | 100-240V 50/60Hz | 100-240V 50/60Hz | 100-240V 50/60Hz |
| Lifetime | ≥100,000 | ≥100,000 | ≥100,000 |
